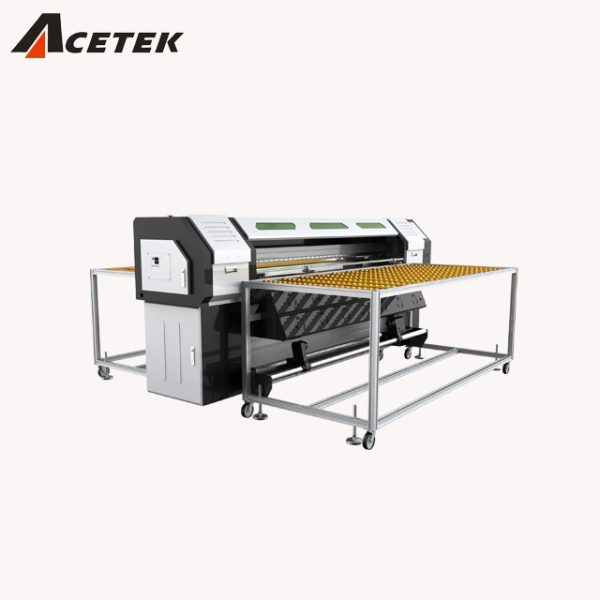

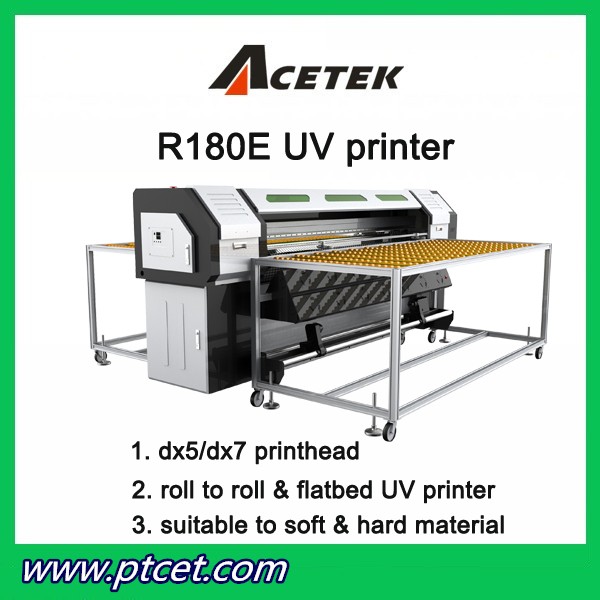

Acetek R180E-UV flatbed uv & roll to roll printer
Acetek R180 uv roll to roll and flatbed printer is a new printing machine which combined flatbed printer with inkjet printer in one machine, along with all features and advantages of flatbed printer and inkjet printer. use for uv flatbed printer, flatbed uv printer, eco flatbed printer, glass printer
- Description
- Inquiry
Description
Introduction:
Acetek R180 uv hybrid printer is a new printing machine which combined flatbed printer with inkjet printer in one machine, along with all features and advantages of flatbed printer and inkjet printer. continuing Acetek consistent style of superior material, exquisite workmanship and stable production.
R180 is equipped with thefeeding and take up system or roll printing, and also comes with front and back extension platform for plate printing.
The conveyor feeding system can convey both rigid and flexible media accurately. It can print roll and plate material at the same time.
1.8m uv printer Charater:
The vacuum system controls the whole printing platform to remain media smoothwithout wave, and make true of “edge to edge” printing.
Print both rolls and plate materials, efficiently solve the problem of printing rolls and plate materials in one machine, it’s mainly used in advertising, photographic studio, decoration and other industries;
4 color, 6 color , 8 colorCMYK+W printing (C,M,Y,K,LC,LM LK,LLK,CMYK+W )
Full range of air-suction function, it is convenient for the transmission of rolls and plate materials.
Intelligent infrared heating, which can automatically shut down the heating system whilethe machine stopprinting, very safe and reliable.
With advanced servo control system, ensure the accuracy of the printing position and consistency, very long length material can be also transmitted smoothly.
Efficient on-line material drying system, fast drying the materials.
Perfect design of ink system and nozzle moisturizing device, ensure the continuity and quality of printing;
High resolution and high speed to satisfy different customers with different orders, realizing the rapid production of the batch, varieties and more personalized.
Support a variety of image formats and software, such as JPG/TIFF/AI/EPS/PS;
With advanced servo control system, ensure the accuracy of the printing position and consistency, very long length material can be also transmitted smoothly.
High speed data processing and transmission;
Adopt professional RIP, enhance production efficiency greatly;
Adopt advanced band conveyor device and printhead adjustable device.It can adjust the height of cleaning system and carriage at the same time, it could fit all kinds of cloth thickness, Flat board material.
Max printing thickness is 30mm;
Standard tension rail take-up system, Auto take-up system;
Intelligent vertical location in the front and back;
Special anti-collision mechanism for carriage, lengthen the lifetime of printhead.
Parameters:
Model Specification | R180E-UV,1.8m uv printer |
Appearance color | black |
Printhead type | EPS-DX5/EPS DX7 |
Printhead number | 2 |
Ink droplet size | 3.5PL |
Ink type | UV ink |
Colors | KKCCMMYY |
Ink specification | 1000ML |
Print maxnum width | 1800mm |
heat system | fan drying system |
External heat system | Infrared heater & fan drying system |
RIP software | Maintop/PP/Wasatch |
Operate environment | Temperature: 15 to 35°C (20 to 32°C suggest) Humidity:20 to 80% (40 to 60% suggest) |
Electric specification | AC 100-120V or 200-240V 50-60Hz |
Main allocation | |
Data interface | USB2.0/3.0 OPTIC FIBER |
HCI window | Single color LCD |
Machine language | English |
Motor | Leadshine AC servo |
Guide rail | THK |
Ink supply way | Gard guillotine |
Main beam | Aluminium magnesium alloy profiles |
Fan drying system | high-power & nulti-section air suction system |
Roller pater structure | – |
Subsidiary platform | Standard front and rear subsidiary platform |
Power input | High-power filter |
Electric brand | Mingwe power supplyYILIJET control system |
Producetion specification | Appearance size(L*W*H)3160*1130*1330 Pakage size(L*W*H)3350*800*1500 |
Weight(KG) | About 400KG |
Support update | – |
Standard | Constant tension takeup system |
