Acetek TC-3304L Heavy duty canvas banner advertising print solvent printer parts price for sale
- Description
- Inquiry
Description
Acetek TC-3304L Heavy duty canvas banner advertising print solvent printer parts price for sale
the advantage of solvent printer for sale :

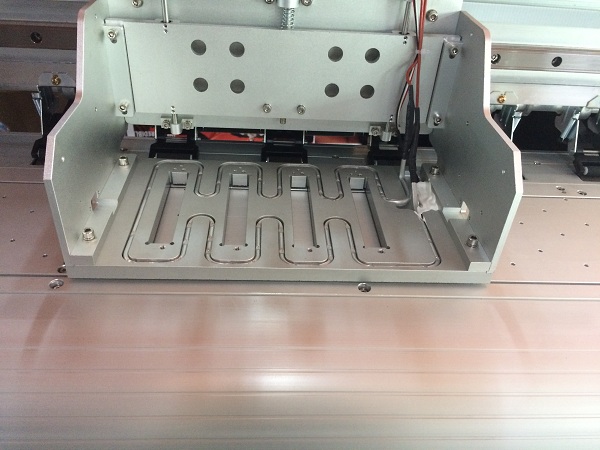

1. All steel nozzle printhead,inner heating&circulation,design life time, All alluminum alloy
beam,mute linear rail, assures resolution
2. the latest Konica Minolta 5121 print heads, with much wider nozzles, and latest technology,
more efficient, faster printing.
3.Strong Aluminum Beam and THK Rail
Adopt the strong aluminum beam and THK rail; longtime use in printing and head carrier
moves steadily and quietly. The German IGUS chain has been certified with its quality.
4. double leadshine motor ( panasonic motor avaible ) ensure carriage working stability and
safety of transimisson.
4.High precision platform, pinch roller,fine feeding&take up,neat and effeciency.

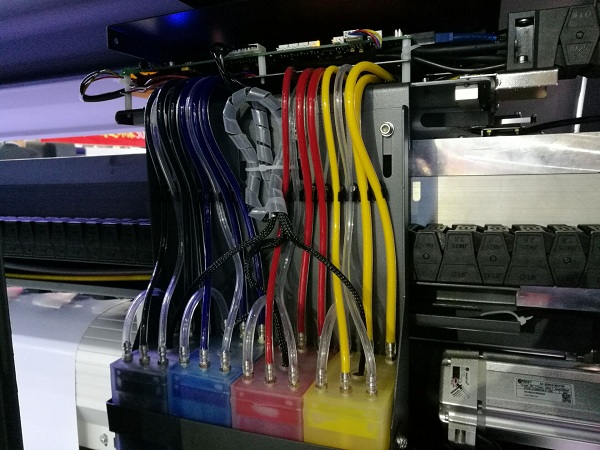

5.Nozzle heating & ink recirculating, stable negative pressure, keep printing without ink break.
the paraments of solvent printer price :
Model | TC-3304L | TC-3308L | |
Print Head | Drop on demand Piezo Head | ||
Number of Printhead | 4 Heads | 8 heads | |
Maximun Print Width | 3200mm(125.98″) | ||
KM512-30pl printhead (4head or 8 heads) konica 512i large format printer | 480*360dpi 2pass 240m2/h | 480X360dpi 2pass 480 m2/h | |
480*540dpi 3pass 180m2/h | 480X540dpi 3pass 360 m2/h | ||
480*720dpi 4pass 120m2/h | 480X720dpi 4pass 240 m2/h | ||
Media | max.width | 3300mm(129.92″) | |
Max. Weight | 80kg | ||
Type | Frontlit,Backlit,Vinyl,Polyester,Window Film, Leater… | ||
thickness | 4mm(Max) | ||
Heating System | 3 way intelligent heater | ||
Auto Media Feeding &Take-up System | Equipped | ||
Ink | Type | Solvent ink (C,M,Y,K) | |
Capacity | k1L or 5L per Color Main Tan | ||
Auto Cleaning System | Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System | ||
Print interface | USB2.0 | ||
Power Specification | 220V/230V 50Hz/60Hz Printer:660W Heater:1900W | ||
Operational Environment | Temperature:20°C-28°C Humidity:40%-70% | ||
Compatible RIP Software | Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop | ||
Dimension &Weight | Machine | L4800mm×W1110mm×H1450mm 570kg | L4800mm×W1110mm×H1500mm 800kg |
Package | L4800mm×W1030mm×H880mm 620kg
| L4800mm×W1030mm×H1580mm 950kg
|
Wide range of application industries:
This large format printer can direct print on outdoor advertising , 3D wallpaper, commercial
advertising, Car wrap, billboard, outdoor post, backlit light box and so on.
brand spare parts standard spare parts
BYHX-A-KM512i/124i-8H Boards Maintop RIP software(photoprint optional) made in Japan Panosonic 400W AC servo motorLG computer screen THK bearing Germany IGUS Power cable Italy Megadyne belt Value Plastics tube connector JAPANESE THK linear guide with two sliders JYY ink Pump Solenoid Valve | Flagship Printer body High quality 200mm wide printing bed Aluminum beam Intelligent infrared heating system LED lights at cleaning postion and printing bed 4 in 1 heating control system Rear-Printing bed-front-Printhead heater Negative pressure system Printhead Solvent cleaning system Adjustable vacuum for Printing bed |
welcome to chose our Acetek 3.2m solvent printer
